1. 简介

从 6.2.2 版本起，Seatable 的配置方式向 Seafile 的配置模式转变。开始逐步减少 conf 下的配置文件，将这些配置文件的内容全部转移的变量文件中。这个能够保存更精简更易维护的配置文件。在6.2.2 中以下的指令可以用来检测配置文件是否正确有效。

docker exec -it seatable-server /templates/seatable.sh python-env /opt/seatable/seatable-server-latest/dtable-web/manage.py check

详细的升级更新操作步骤可以参考：https://admin.seatable.com/upgrade/extra-upgrade-notice/。

官方提供了升级脚本用于实现从 6.1 升级到6.2。脚本内容下载地址https://github.com/seatable/seatable-release/blob/main/compose/migrate/migrate_6.1_6.2.sh。该脚本执行了以下操作：

  • 将 SECRET_KEY 这个变量从  dtable_web_settings.py 迁移到 .env 环境文件
  • 清理 dtable_web_settings.py 中未使用的配置文件设置

另外，这个脚本还检测以下的配置文件情况

  •  dtable-api-gateway.conf, dtable-db.conf, dtable-events.conf, dtable-storage-server.conf 和 dtable_server_config.json 这些配置文件都将被废弃，对应的配置内容全部迁移到 .env 配置文件
  • dtable_web_settings.py 中有关邮件的配置也全部迁移到 .env 变量设置文件

对应废弃的配置文件变量可以参考：https://admin.seatable.com/configuration/components/dtable-api-gateway/

1.1. 参考链接

2. 升级步骤

6.2 版本开始相关的设置信息全部简化到 .env 配置文件中，版本升级大概分为以下几步：

  1. 停止现有版本的服务
  2. 备份现有版本的目录。容器环境仅需备份seatable 对应的文件夹
  3. 下载新版本镜像和升级检查脚本
  4. 执行升级检查脚本
  5. 参照升级检查脚本的提示调整 .env 配置文件的内容，删除 6.2 版本中废弃的配置文件
  6. 调整容器配置文件
  7. 启动容器配置文件

2.1. 检查及故障排查

2.1.1. seatable 无法启动或 web 页面无法打开

Browser -> Domain/DNS -> Caddy -> Nginx -> SeaTable Container -> SeaTable Server（我们这里省略了 Caddy 组件）

2.1.2. 确认 seatable server 服务是否正常

执行 docker logs seatable-server 应该有以下的输出

2024-02-04 12:59:17 Start server
SeaTable started
2024-02-04 12:59:21 For more startup information, please check the /opt/seatable/logs/init.log
2024-02-04 12:59:21 This is an idle script (infinite loop) to keep container running.

docker exec -it seatable-server curl http://127.0.0.1:8000/server-info/

执行上述指令应该有对应的回应。

{"version":"6.1.3","edition":"enterprise edition"}

另外可以通过以下的指令查看 log 日志信息情况。

cd /opt/seatable-compose && docker compose logs -f
tail -f /opt/seatable-server/seatable/logs/*.log

2.1.3. 检查容器健康状态是否正常

执行 docker ps 应该有类似以下的输出

CONTAINER ID   IMAGE                               STATUS                NAMES
0411d977eb25   seatable/seatable-enterprise:6.1.3  Up 3 days (healthy)   seatable-server

2.1.4. 检查 dtable-server

通过以下的指令检查 dtable-server 是否正常。如果没有正常的回应需要检查 moniter.log 日志信息，特定情况下需要调整 DTABLE_SERVER_PING_TIMEOUT 的设定值。

curl https://$SEATABLE_SERVER_HOSTNAME/dtable-server/ping/

变量的设定值需要在 seatable-server.yml 和 .env 文件中配置

2.1.5. 检查 nginx 和 caddy

docker exec -it seatable-server nginx -t
docker logs caddy

对应的输出如下：

nginx: the configuration file /etc/nginx/nginx.conf syntax is ok
nginx: configuration file /etc/nginx/nginx.conf test is successful

2.1.6. 检查 dtable-web

执行 check-dtable-web.sh 来排查 dtable-web 的故障情况

3. 非 python 环境

3.1. .env

注意新增加 6.2 部分的内容，主要是增加了邮件配置信息和相关的密钥信息。

# components to be used; IMPORTANT: there should be no space between the files names !
COMPOSE_FILE='seatable-server.yml'
COMPOSE_PATH_SEPARATOR=','

# system settings
TIME_ZONE='Asia/Shanghai'

# seatable server url
SEATABLE_SERVER_HOSTNAME='table.waringid.me'
SEATABLE_SERVER_PROTOCOL='https'

# initial web admin
SEATABLE_ADMIN_EMAIL='test@163.com'
SEATABLE_ADMIN_PASSWORD='password'

# database
SEATABLE_MYSQL_ROOT_PASSWORD='password'
MARIADB_PASSWORD='password'

# redis
REDIS_PASSWORD='redis_password'
JWT_PRIVATE_KEY='JWT-key'

SEATABLE_DIR='/rdm_4t/seatable'


# SeaTable v6.2
SECRET_KEY='random password'

SEATABLE_SHOW_TEMPLATES_LINK=true
SEATABLE_TEMPLATE_BASE_API_TOKEN='random password'
SEATABLE_TEMPLATE_TABLE_NAME='templates'
SEATABLE_ENABLE_CREATE_BASE_FROM_TEMPLATE=true

SEATABLE_EMAIL_USE_TLS=True
SEATABLE_EMAIL_HOST='smtp.qq.com'
SEATABLE_EMAIL_HOST_USER='100001@qq.com'
SEATABLE_EMAIL_HOST_PASSWORD='random password'
SEATABLE_EMAIL_PORT=587
SEATABLE_DEFAULT_FROM_EMAIL='100001@qq.com'
SEATABLE_SERVER_EMAIL='100001@qq.com'

DTABLE_BAIDU_MAP_KEY='random password'
PLUGINS_REPO_ID='a5bbeac5-7dea-4092-9d6e-b9198367cb82'

3.2. seatable-server.yml

该配置文件需要注意调整了镜像文件的版本和 Redis 启动命令的内容，增加了内存大小限制

---
services:
  seatable-server:
    image: ${SEATABLE_IMAGE:-seatable/seatable-enterprise:6.2.12}
    restart: unless-stopped
    container_name: seatable-server
    ports:
      - "8006:80"
    volumes:
      - "${SEATABLE_DIR}/seatable-server:/shared"
      - "${SEATABLE_DIR}/deps/seatable.sh:/templates/seatable.sh:rx"
      - "${SEATABLE_DIR}/deps/nginx.conf:/etc/nginx/sites-enabled/default"
      - "${SEATABLE_DIR}/deps/licenseparse.py:/opt/seatable/seatable-server-latest/dtable-web/seahub/utils/licenseparse.py:rw"
      - "${SEATABLE_DIR}/deps/seafile-controller:/opt/seatable/seatable-server-latest/seafile/bin/seafile-controller:rw"
      - "${SEATABLE_DIR}/deps/seaf-server:/opt/seatable/seatable-server-latest/seafile/bin/seaf-server:rw"
    environment:
      - SEATABLE_MYSQL_DB_HOST=${MARIADB_HOST:-mariadb}
      - SEATABLE_MYSQL_DB_PORT=${MARIADB_PORT:-3306}
      - SEATABLE_MYSQL_DB_USER=root
      - SEATABLE_MYSQL_DB_PASSWORD=${MARIADB_PASSWORD:?Variable is not set or empty}
      - INIT_SEATABLE_MYSQL_ROOT_PASSWORD=${MARIADB_ROOT_PASSWORD:-${MARIADB_PASSWORD}}
      - SEATABLE_MYSQL_DB_DTABLE_DB_NAME=dtable_db
      - SEATABLE_MYSQL_DB_CCNET_DB_NAME=ccnet_db
      - SEATABLE_MYSQL_DB_SEAFILE_DB_NAME=seafile_db
      - REDIS_HOST=${REDIS_HOST:-redis}
      - REDIS_PORT=${REDIS_PORT:-6379}
      - REDIS_PASSWORD=${REDIS_PASSWORD:?Variable is not set or empty}
      - JWT_PRIVATE_KEY=${JWT_PRIVATE_KEY:?Variable is not set or empty}
      - SECRET_KEY=${SECRET_KEY:?Variable is not set or empty}
      - SEATABLE_SERVER_HOSTNAME=${SEATABLE_SERVER_HOSTNAME:?Variable is not set or empty}
      - SEATABLE_SERVER_PROTOCOL=${SEATABLE_SERVER_PROTOCOL:-https}
      - SEATABLE_ADMIN_EMAIL=${SEATABLE_ADMIN_EMAIL:?Variable is not set or empty}
      - SEATABLE_ADMIN_PASSWORD=${SEATABLE_ADMIN_PASSWORD:?Variable is not set or empty}
      - TIME_ZONE=${TIME_ZONE}
      - ENABLE_PYTHON_SCRIPT=${ENABLE_PYTHON_SCRIPT:-true}
      - PYTHON_SCHEDULER_URL=${PYTHON_SCHEDULER_URL:-http://python-scheduler}
      - PYTHON_SCHEDULER_AUTH_TOKEN=${PYTHON_SCHEDULER_AUTH_TOKEN:-}
      - REQUESTS_CA_BUNDLE=/etc/ssl/certs/ca-certificates.crt
      - SEATABLE_EMAIL_USE_TLS=${SEATABLE_EMAIL_USE_TLS:-}
      - SEATABLE_EMAIL_HOST=${SEATABLE_EMAIL_HOST:-}
      - SEATABLE_EMAIL_HOST_USER=${SEATABLE_EMAIL_HOST_USER:-}
      - SEATABLE_EMAIL_HOST_PASSWORD=${SEATABLE_EMAIL_HOST_PASSWORD:-}
      - SEATABLE_EMAIL_PORT=${SEATABLE_EMAIL_PORT:-}
      - SEATABLE_DEFAULT_FROM_EMAIL=${SEATABLE_DEFAULT_FROM_EMAIL:-}
      - SEATABLE_SERVER_EMAIL=${SEATABLE_SERVER_EMAIL:-}
      - SEATABLE_SHOW_TEMPLATES_LINK=${SEATABLE_SHOW_TEMPLATES_LINK:-}
      - SEATABLE_TEMPLATE_BASE_API_TOKEN=${SEATABLE_TEMPLATE_BASE_API_TOKEN:-}
      - SEATABLE_TEMPLATE_TABLE_NAME=${SEATABLE_TEMPLATE_TABLE_NAME:-}
      - SEATABLE_ENABLE_CREATE_BASE_FROM_TEMPLATE=${SEATABLE_ENABLE_CREATE_BASE_FROM_TEMPLATE:-}
      - SEATABLE_HELP_LINK=${SEATABLE_HELP_LINK:-https://help.seatable.com}
      - SEATABLE_LOG_LEVEL=${SEATABLE_LOG_LEVEL:-INFO}
      - ENABLE_SEATABLE_AI=${ENABLE_SEATABLE_AI:-false}
      - SEATABLE_AI_SERVER_URL=${SEATABLE_AI_SERVER_URL:-http://seatable-ai:8888}
    depends_on:
      mariadb:
        condition: service_healthy
      redis:
        condition: service_healthy
    networks:
      - frontend-net
      - backend-seatable-net
    # healthcheck specifically for dtable-web
    healthcheck:
      test: ["CMD-SHELL", "curl --fail http://localhost:8000 || exit 1"]
      interval: 20s
      retries: 3
      start_period: 30s
      timeout: 10s

  mariadb:
    image: ${SEATABLE_DB_IMAGE:-mariadb:11.8.5-noble}
    restart: unless-stopped
    container_name: mariadb
    command: ["mariadbd", "--innodb_snapshot_isolation=OFF"]
    environment:
      - MYSQL_ROOT_PASSWORD=${SEATABLE_MYSQL_ROOT_PASSWORD:?Variable is not set or empty}
      - MYSQL_LOG_CONSOLE=true
      - MARIADB_AUTO_UPGRADE=1
      - TZ=${TIME_ZONE}
    volumes:
      - "${SEATABLE_DIR}/mariadb:/var/lib/mysql"
    networks:
      - backend-seatable-net
    healthcheck:
      test:
        [
          "CMD",
          "/usr/local/bin/healthcheck.sh",
          "--connect",
          "--mariadbupgrade",
          "--innodb_initialized",
        ]
      interval: 20s
      retries: 3
      start_period: 30s
      timeout: 10s
      # On older database containers without healthcheck users present you might need to create them manually,
      # otherwise the container stays unhealthy.

  redis:
    image: ${SEATABLE_REDIS_IMAGE:-redis:8.4.0-bookworm}
    restart: unless-stopped
    container_name: redis
    environment:
      - REDIS_PASSWORD=${REDIS_PASSWORD:?Variable is not set or empty}
    command:
      - /bin/sh
      - -c
      - redis-server --requirepass "$${REDIS_PASSWORD:?REDIS_PASSWORD variable is not set}" --maxmemory "${REDIS_MAX_MEMORY:-500mb}" --maxmemory-policy allkeys-lru
    networks:
      - backend-seatable-net
    healthcheck:
      test: ["CMD", "redis-cli", "ping"]
      interval: 20s
      retries: 3
      timeout: 5s

networks:
  frontend-net:
    name: frontend-net
  backend-seatable-net:
    name: backend-seatable-net

3.3. 删除废弃的配置文件

删除 6.2 版本中已经废弃不再使用的配置文件

rm seatable-server/seatable/conf/dtable-storage-server.conf
rm seatable-server/seatable/conf/dtable-events.conf
rm seatable-server/seatable/conf/dtable-db.conf
rm seatable-server/seatable/conf/dtable_server_config.json
docker-compose -f seatable-server.yml up

3.4. 补充内容（FAQ）

故障现象：版本升级后能正常打开 web 页面并且能正常登录，但是打开具体的表格文件时提示后端服务器错误并且 dtable-api-gateway 提示 404 和 400 错误。其它日志均无异常信息

故障定位：容器镜像、系统服务和端口等均无异常，最后结合 seatable-server.yml 配置文件检查 dtable-storage-server 的挂载位置存在自定义配置。

故障解决：在 .env 中增加 STORAGE_SERVER_FS_PATH 的自定义配置并且在 seatable-server.yml 配置文件中引用。重启后解决

4. python 环境

6.2 版本中 python 环境有一些调整。之前的版本无需调用 Redis 资源，6.2版本使用了 Redis 。

  • 需要在 yml 配置文件中增加对应的内容，另外需要调整 Redis 容器的网络设置，确保 python 环境能正确调用 Redis 服务器。
  • 运行 python 脚本时需要注意超时时间，默认配置的超时时间时 60s，如果需要更长的执行操作需要调整该配置。

4.1. .env

# components to be used; IMPORTANT: there should be no space between the files names !
COMPOSE_FILE='seatable-server.yml'
COMPOSE_PATH_SEPARATOR=','

# system settings
TIME_ZONE='Asia/Shanghai'

# seatable server url
SEATABLE_SERVER_HOSTNAME='seatable.waringid.me'
SEATABLE_SERVER_PROTOCOL='https'

# initial web admin
SEATABLE_ADMIN_EMAIL='test@163.com'
SEATABLE_ADMIN_PASSWORD='random-password'

# database
SEATABLE_MYSQL_ROOT_PASSWORD='random-password'

SEATABLE_DIR='/data/seatable'


SEATABLE_PYTHON_PIPELINE_MYSQL_DB_HOST=db
SEATABLE_PYTHON_PIPELINE_DB_NAME=scheduler
SEATABLE_PYTHON_PIPELINE_MYSQL_ROOT_PASSWORD='random-password'
SEATABLE_PYTHON_PIPELINE_MYSQL_USER=python
SEATABLE_PYTHON_PIPELINE_MYSQL_PASSWORD='random-password'
#SEATABLE_PYTHON_PIPELINE_MYSQL_VOLUMNS=/data/seatable/python-pipeline/mysql-data
PYTHON_TRANSFER_DIRECTORY_PATH=/data/seatable/python-pipeline/tmp
PYTHON_SCHEDULER_AUTH_TOKEN=random-password
PYTHON_SCHEDULER_URL=http://python-scheduler
PYTHON_SCHEDULER_LOGS_DIR=/data/seatable/python-pipeline/logs/scheduler-logs
PYTHON_STARTER_USE_ALTERNATIVE_FILE_SERVER_ROOT=True
PYTHON_STARTER_ALTERNATIVE_FILE_SERVER_ROOT=http://seatable-server
PYTHON_STARTER_LOGS_DIR=/data/seatable/python-pipeline/logs/starter-logs
SEATABLE_SCHEDULER_IMAGE=seatable/seatable-python-scheduler:6.2.1
SEATABLE_STARTER_IMAGE=seatable/seatable-python-starter:6.2.1
SEATABLE_RUNNER_IMAGE=seatable/seatable-python-runner:6.2.2

REDIS_PASSWORD='random-password'
JWT_PRIVATE_KEY='random-password'
SEATABLE_MYSQL_ROOT_PASSWORD='random-password'
MARIADB_PASSWORD='random-password'

# SeaTable v6.2
SECRET_KEY='random-password'

ENABLE_SEATABLE_AI=false

SEATABLE_EMAIL_USE_TLS=True
SEATABLE_EMAIL_HOST='smtp.gmail.com'
SEATABLE_EMAIL_HOST_USER='username@gmail.com'
SEATABLE_EMAIL_HOST_PASSWORD='password'
SEATABLE_EMAIL_PORT=587
SEATABLE_DEFAULT_FROM_EMAIL='username@gmail.com'
SEATABLE_SERVER_EMAIL='username@gmail.com'

TEMPLATE_BASE_API_TOKEN='random-password'
TEMPLATE_TABLE_NAME='templates'
ENABLE_CREATE_BASE_FROM_TEMPLATE=True
SHOW_TEMPLATES_LINK=True

DTABLE_BAIDU_MAP_KEY='random-password'
PLUGINS_REPO_ID='a5bbeac5-7dea-4092-9d6e-b9198367cb82'

SEATABLE_FAAS_URL='http://python-scheduler'
SEATABLE_FAAS_AUTH_TOKEN='random-password'

4.2. seatable-server.yml

---
services:
  seatable-server:
    image: ${SEATABLE_IMAGE:-seatable/seatable-enterprise:6.2.12}
    restart: unless-stopped
    container_name: seatable-server
    ports:
      - "8006:80"
    volumes:
      - "${SEATABLE_DIR}/seatable-server:/shared"
      - "${SEATABLE_DIR}/deps/nginx.conf:/etc/nginx/sites-enabled/default"
      - "${SEATABLE_DIR}/deps/seatable.sh:/templates/seatable.sh:rx"
      - "${SEATABLE_DIR}/deps/licenseparse.py:/opt/seatable/seatable-server-latest/dtable-web/seahub/utils/licenseparse.py:rw"
      - "${SEATABLE_DIR}/deps/seafile-controller:/opt/seatable/seatable-server-latest/seafile/bin/seafile-controller:rw"
      - "${SEATABLE_DIR}/deps/seaf-server:/opt/seatable/seatable-server-latest/seafile/bin/seaf-server:rw"
    environment:
      - SEATABLE_MYSQL_DB_HOST=${MARIADB_HOST:-mariadb}
      - SEATABLE_MYSQL_DB_PORT=${MARIADB_PORT:-3306}
      - SEATABLE_MYSQL_DB_USER=root
      - SEATABLE_MYSQL_DB_PASSWORD=${MARIADB_PASSWORD:?Variable is not set or empty}
      - INIT_SEATABLE_MYSQL_ROOT_PASSWORD=${MARIADB_ROOT_PASSWORD:-${MARIADB_PASSWORD}}
      - SEATABLE_MYSQL_DB_DTABLE_DB_NAME=dtable_db
      - SEATABLE_MYSQL_DB_CCNET_DB_NAME=ccnet_db
      - SEATABLE_MYSQL_DB_SEAFILE_DB_NAME=seafile_db
      - REDIS_HOST=${REDIS_HOST:-redis}
      - REDIS_PORT=${REDIS_PORT:-6379}
      - REDIS_PASSWORD=${REDIS_PASSWORD:?Variable is not set or empty}
      - JWT_PRIVATE_KEY=${JWT_PRIVATE_KEY:?Variable is not set or empty}
      - SECRET_KEY=${SECRET_KEY:?Variable is not set or empty}
      - SEATABLE_SERVER_HOSTNAME=${SEATABLE_SERVER_HOSTNAME:?Variable is not set or empty}
      - SEATABLE_SERVER_PROTOCOL=${SEATABLE_SERVER_PROTOCOL:-https}
      - SEATABLE_ADMIN_EMAIL=${SEATABLE_ADMIN_EMAIL:?Variable is not set or empty}
      - SEATABLE_ADMIN_PASSWORD=${SEATABLE_ADMIN_PASSWORD:?Variable is not set or empty}
      - TIME_ZONE=${TIME_ZONE}
      - ENABLE_PYTHON_SCRIPT=${ENABLE_PYTHON_SCRIPT:-true}
      - PYTHON_SCHEDULER_URL=${PYTHON_SCHEDULER_URL:-http://python-scheduler}
      - PYTHON_SCHEDULER_AUTH_TOKEN=${PYTHON_SCHEDULER_AUTH_TOKEN:-}
      - REQUESTS_CA_BUNDLE=/etc/ssl/certs/ca-certificates.crt
      - SEATABLE_EMAIL_USE_TLS=${SEATABLE_EMAIL_USE_TLS:-}
      - SEATABLE_EMAIL_HOST=${SEATABLE_EMAIL_HOST:-}
      - SEATABLE_EMAIL_HOST_USER=${SEATABLE_EMAIL_HOST_USER:-}
      - SEATABLE_EMAIL_HOST_PASSWORD=${SEATABLE_EMAIL_HOST_PASSWORD:-}
      - SEATABLE_EMAIL_PORT=${SEATABLE_EMAIL_PORT:-}
      - SEATABLE_DEFAULT_FROM_EMAIL=${SEATABLE_DEFAULT_FROM_EMAIL:-}
      - SEATABLE_SERVER_EMAIL=${SEATABLE_SERVER_EMAIL:-}
      - SEATABLE_SHOW_TEMPLATES_LINK=${SEATABLE_SHOW_TEMPLATES_LINK:-}
      - SEATABLE_TEMPLATE_BASE_API_TOKEN=${SEATABLE_TEMPLATE_BASE_API_TOKEN:-}
      - SEATABLE_TEMPLATE_TABLE_NAME=${SEATABLE_TEMPLATE_TABLE_NAME:-}
      - SEATABLE_ENABLE_CREATE_BASE_FROM_TEMPLATE=${SEATABLE_ENABLE_CREATE_BASE_FROM_TEMPLATE:-}
      - SEATABLE_HELP_LINK=${SEATABLE_HELP_LINK:-https://help.seatable.com}
      - SEATABLE_LOG_LEVEL=${SEATABLE_LOG_LEVEL:-INFO}
      - ENABLE_SEATABLE_AI=${ENABLE_SEATABLE_AI:-false}
      - SEATABLE_AI_SERVER_URL=${SEATABLE_AI_SERVER_URL:-http://seatable-ai:8888}
    depends_on:
      mariadb:
        condition: service_healthy
      redis:
        condition: service_healthy
    networks:
      - frontend-net
      - backend-seatable-net
    healthcheck:
      test: ["CMD-SHELL", "curl --fail http://localhost:8000 || exit 1"]
      interval: 20s
      retries: 3
      start_period: 30s
      timeout: 10s

  mariadb:
    image: ${SEATABLE_DB_IMAGE:-mariadb:11.8.5-noble}
    restart: unless-stopped
    container_name: mariadb
    command: ["mariadbd", "--innodb_snapshot_isolation=OFF"]
    environment:
      - MYSQL_ROOT_PASSWORD=${SEATABLE_MYSQL_ROOT_PASSWORD:?Variable is not set or empty}
      - MYSQL_LOG_CONSOLE=true
      - MARIADB_AUTO_UPGRADE=1
    volumes:
      - "${SEATABLE_DIR}/mariadb:/var/lib/mysql"
    networks:
      - backend-seatable-net
    healthcheck:
      test:
        [
          "CMD",
          "/usr/local/bin/healthcheck.sh",
          "--connect",
          "--mariadbupgrade",
          "--innodb_initialized",
        ]
      interval: 20s
      retries: 3
      start_period: 30s
      timeout: 10s
      # On older database containers without healthcheck users present you might need to create them manually,
      # otherwise the container stays unhealthy.

  redis:
    image: ${SEATABLE_REDIS_IMAGE:-redis:8.4.0-bookworm}
    restart: unless-stopped
    container_name: redis
    environment:
      - REDIS_PASSWORD=${REDIS_PASSWORD:?Variable is not set or empty}
    command:
      - /bin/sh
      - -c
      - redis-server --requirepass "$${REDIS_PASSWORD:?REDIS_PASSWORD variable is not set}" --maxmemory "${REDIS_MAX_MEMORY:-500mb}" --maxmemory-policy allkeys-lru
    networks:
      - backend-seatable-net
      - backend-scheduler-net
    healthcheck:
      test: ["CMD", "redis-cli", "ping"]
      interval: 20s
      retries: 3
      timeout: 5s

  python-scheduler:
    image: ${SEATABLE_SCHEDULER_IMAGE:-seatable/seatable-python-scheduler:6.2.1}
    restart: unless-stopped
    container_name: python-scheduler
    environment:
      - TIME_ZONE=${TIME_ZONE}
      - DATABASE_NAME=${SEATABLE_PYTHON_PIPELINE_MYSQL_DB_NAME:-scheduler}
      - DB_HOST=mariadb
      - DB_ROOT_PASSWD=${SEATABLE_PYTHON_PIPELINE_MYSQL_ROOT_PASSWORD:-}
      - DB_USER=${SEATABLE_PYTHON_PIPELINE_MYSQL_USER:-}
      - DB_PASSWD=${SEATABLE_PYTHON_PIPELINE_MYSQL_PASSWORD:-}
      - REDIS_HOST=${REDIS_HOST:-redis}
      - REDIS_PORT=${REDIS_PORT:-6379}
      - REDIS_PASSWORD=${REDIS_PASSWORD:?Variable is not set or empty}
      - PYTHON_SCHEDULER_AUTH_TOKEN=${PYTHON_SCHEDULER_AUTH_TOKEN:?Variable is not set or empty}
      - SEATABLE_SERVER_URL=${SEATABLE_SERVER_PROTOCOL:-https}://${SEATABLE_SERVER_HOSTNAME}
      - PYTHON_SCHEDULER_LOG_LEVEL=${PYTHON_SCHEDULER_LOG_LEVEL:-WARNING}
      - DELETE_LOG_DAYS=${DELETE_LOG_DAYS:-30}
      - PYTHON_SCHEDULER_WINDOW_SECS=${PYTHON_SCHEDULER_WINDOW_SECS:-300}
      - PYTHON_SCHEDULER_RATE_LIMIT_PERCENT=${PYTHON_SCHEDULER_RATE_LIMIT_PERCENT:-0.25}
      - PYTHON_STARTER_TOTAL_THREAD_COUNT=${PYTHON_STARTER_TOTAL_THREAD_COUNT:-10}
      # Timeout is defined in seconds
      - PYTHON_PROCESS_TIMEOUT=${PYTHON_PROCESS_TIMEOUT:-600}
      - REQUESTS_CA_BUNDLE=/etc/ssl/certs/ca-certificates.crt
      - LOG_TO_STDOUT=true

    volumes:
      - "${PYTHON_SCHEDULER_LOGS_DIR:-/tmp}:/opt/scheduler/logs"
    extra_hosts:
      - "host.docker.internal:host-gateway"
    networks:
      - backend-scheduler-net
      - frontend-net
      - backend-seatable-net
    depends_on:
      mariadb:
        condition: service_healthy
    healthcheck:
      test:
        [
          "CMD-SHELL",
          "pgrep -f 'python3 scheduler.py' && pgrep -f 'python3 flask_server.py'",
        ]
      interval: 20s
      retries: 3
      start_period: 20s
      timeout: 10s

  python-starter:
    image: ${SEATABLE_STARTER_IMAGE:-seatable/seatable-python-starter:6.2.1}
    restart: unless-stopped
    container_name: python-starter

    volumes:
      - "/var/run/docker.sock:/var/run/docker.sock"
      - "${PYTHON_TRANSFER_DIRECTORY_PATH:-/tmp}:${PYTHON_TRANSFER_DIRECTORY_PATH:-/tmp}"
      - "${PYTHON_STARTER_LOGS_DIR:-/tmp}:/opt/seatable-python-starter/logs"
    environment:
      - TIME_ZONE=${TIME_ZONE}
      - REDIS_HOST=${REDIS_HOST:-redis}
      - REDIS_PORT=${REDIS_PORT:-6379}
      - REDIS_PASSWORD=${REDIS_PASSWORD:?Variable is not set or empty}
      - PYTHON_SCHEDULER_URL=${PYTHON_SCHEDULER_URL:-http://python-scheduler}
      - PYTHON_TRANSFER_DIRECTORY=${PYTHON_TRANSFER_DIRECTORY_PATH:-/tmp}
      - PYTHON_RUNNER_IMAGE=${PYTHON_RUNNER_IMAGE:-seatable/seatable-python-runner:6.2.2}
      - PYTHON_STARTER_LOG_LEVEL=${PYTHON_STARTER_LOG_LEVEL:-WARNING}
      - PYTHON_RUNNER_CONTAINER_CPUS=${PYTHON_RUNNER_CONTAINER_CPUS:-1}
      - PYTHON_RUNNER_CONTAINER_MEMORY=${PYTHON_RUNNER_CONTAINER_MEMORY:-1g}
      # Timeout is defined in seconds
      - PYTHON_PROCESS_TIMEOUT=${PYTHON_PROCESS_TIMEOUT:-60}
      - PYTHON_RUNNER_READ_ONLY_FILESYSTEM=${PYTHON_RUNNER_READ_ONLY_FILESYSTEM:-true}
      - PYTHON_RUNNER_TMPFS_MOUNT_SIZE_IN_BYTES=${PYTHON_RUNNER_TMPFS_MOUNT_SIZE_IN_BYTES:-104857600}
      - PYTHON_RUNNER_DROPPED_CAPABILITIES=${PYTHON_RUNNER_DROPPED_CAPABILITIES:-CAP_NET_RAW}
      - PYTHON_RUNNER_NO_NEW_PRIVILEGES=${PYTHON_RUNNER_NO_NEW_PRIVILEGES:-true}
      - REQUESTS_CA_BUNDLE=/etc/ssl/certs/ca-certificates.crt
      - LOG_TO_STDOUT=true
    networks:
      - backend-scheduler-net
      - frontend-net

  python-runner:
    image: ${PYTHON_RUNNER_IMAGE:-seatable/seatable-python-runner:6.2.2}
    restart: unless-stopped
    container_name: python-runner
    networks:
      # This is added to ensure that the runner-net network is created
      # Docker-Compose does not seem to create networks that are not used by any containers in the compose file(s)
      - runner-net

networks:
  frontend-net:
    name: frontend-net
  backend-seatable-net:
    name: backend-seatable-net
  backend-scheduler-net:
    name: backend-scheduler-net
  runner-net:
    name: runner-net
    driver: bridge
    driver_opts:
      # Disable inter-container connectivity
      com.docker.network.bridge.enable_icc: "false"

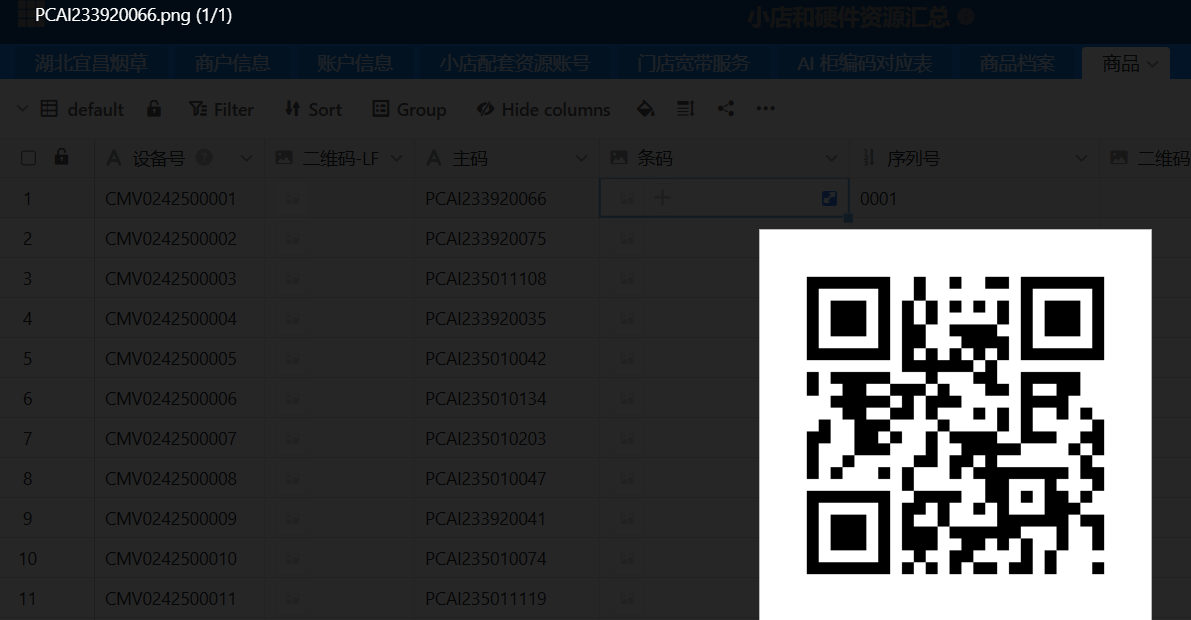

4.3. qr-code.py

from seatable_api import Base, context
import qrcode
from io import BytesIO

base = Base(context.api_token, context.server_url)
base.auth()

TABLE_NAME = "商品"
TEXT_COLUMN = "主码"
IMAGE_COLUMN = "条码"
OVERWRITE = False

rows = base.list_rows(TABLE_NAME)
for row in rows:
    text = row.get(TEXT_COLUMN)
    existing = row.get(IMAGE_COLUMN)
    if not text or (existing and not OVERWRITE):
        continue

    qr = qrcode.QRCode(version=2, error_correction=qrcode.constants.ERROR_CORRECT_M, box_size=10, border=4)
    qr.add_data(text)
    qr.make(fit=True)
    img = qr.make_image(fill_color="black", back_color="white")

    buf = BytesIO()
    img.save(buf, format='PNG')
    buf.seek(0)

    info = base.upload_bytes_file(str(text) + '.png', buf.read(), file_type='image')
    base.update_row(TABLE_NAME, row['_id'], {IMAGE_COLUMN: [info.get('url')]})

print("QR codes generated.")

  • 无标签
写评论...
